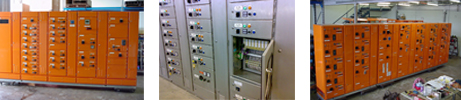

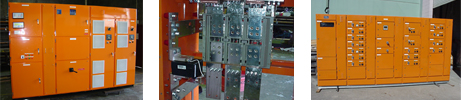

SWITCHBOARDS

MPA's Electrical Workshop provides clients with a complete industrial and commercial switchboard design, manufacturing, installation and commissioning service.

From very large motor control centres to smaller control panels for OEMs, MPA builds high quality switchboards to client specification.

Features include:

• custom-built cabinets
• control panels
• distribution boards
• process controls
• lighting controls
• push button stations
• where appropriate the inclusion of sun shields
and protection to IP66 for outdoor use.

All switchboards are manufactured to AS3439 and MPA has designed a Form 3B switchboard which is type tested for a fault current rating of 63kA at 415V for one second and 40kA for three seconds, with loads up to 3000A.

Manufactured in mild steel, 304 and 316 stainless steel or aluminium, the finishes include types two and four for stainless steel, powder coating for mild steel and aluminium - or as required by the customer.
